Internal rotary encoders

Rotary encoders for internal installation within motors feature up to an IP40 rating and permit high operating temperatures. The wide variety of models can be used to adapt a motor to a wide range of applications, thus minimizing installation work and wiring.

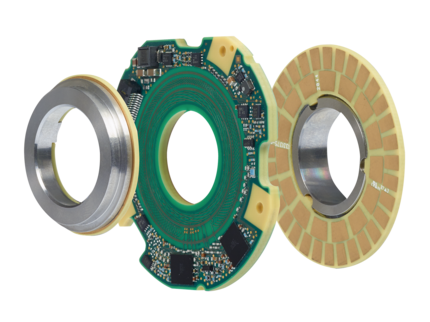

KCI 120 Dplus series

  • Absolute rotary encoders without integral bearing
  • Added second position measuring functionality
  • Hollow through shaft
  • Robust inductive scanning principle
  • Comprised of one scanning unit and two rotor units
  • Available with up to SIL 3 functional safety
  • High positioning accuracy
  • Housing diameter ≈ 81 mm / 65 mm
Find out more

ECN/EQN 1100 series

  • Absolute rotary encoders with integral bearing
  • Stator coupling for plane surface
  • Blind hollow shaft
  • Very high positioning accuracy
  • Available with functional safety
  • Housing diameter ≈ 35 mm
Find out more

ECN/EQN 1300 series

  • Absolute rotary encoders with integral bearing
  • Stator coupling for axial mounting
  • Taper shaft
  • Very high positioning accuracy
  • Available with functional safety
  • Housing diameter ≈ 56 mm
Find out more

KCI/KBI 100 series

  • Absolute rotary encoders without integral bearing
  • Comprised of scanning unit and rotor unit
  • Robust inductive scanning principle
  • Very low-profile design
  • High positioning accuracy
  • Housing diameter ≈ 74 mm
Find out more

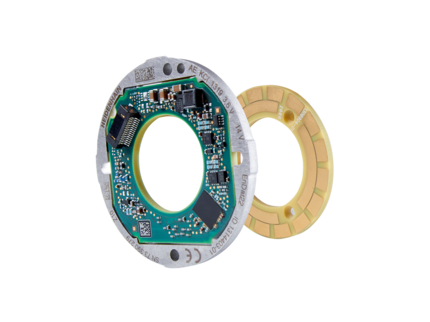

KCI/KBI 1300 series

  • Absolute rotary encoders without integral bearing
  • Comprised of scanning unit and rotor unit
  • Robust inductive scanning principle
  • Very low-profile design
  • High positioning accuracy
  • Housing diameter ≈ 56 mm
Find out more

ECI/EBI/EQI 1100 series

  • Absolute rotary encoders without integral bearing
  • Robust inductive scanning
  • Blind hollow shaft
  • Low-profile design
  • High positioning accuracy
  • Available with up to SIL 3 functional safety
  • Housing diameter ≈ 35 mm
Find out more

ECI/EBI/EQI 1300 series

  • Absolute rotary encoders without integral bearing
  • Robust inductive scanning principle
  • Low-profile design
  • High positioning accuracy
  • Blind hollow shaft or tapered shaft
  • Available with up to SIL 3 functional safety
  • Housing diameter ≈ 56 mm
Find out more

ECI/EBI 100 series

  • Absolute rotary encoders without integral bearing
  • Robust inductive scanning principle
  • Very low-profile design
  • Hollow through shaft diameter: up to 50 mm
  • High positioning accuracy
  • Housing diameter ≈ 91 mm
Find out more

ECI/EBI 4000 series

  • Absolute rotary encoders without integral bearing
  • Robust inductive scanning
  • Comprised of scanning unit and rotor unit
  • Low-profile design
  • Hollow through shaft diameters: 90 mm and 180 mm
  • Available with up to SIL 3 functional safety
  • High positioning accuracy
Find out more

ERN 1300 series

  • Incremental rotary encoders with integral bearing
  • Stator coupling for axial mounting
  • Tapered shaft
  • Very high positioning accuracy
  • With block and sinusoidal commutation signals
  • Housing diameter ≈ 56 mm
Find out more

ERN 1023

  • Incremental rotary encoder with integral bearing
  • Stator coupling for plane surface
  • Blind hollow shaft
  • Block commutation signals
  • Housing diameter ≈ 35 mm
Find out more

ERN 1123

  • Incremental rotary encoders with integral bearing
  • Stator coupling for plane surface
  • Hollow through shaft
  • High positioning accuracy
  • Block commutation signals
  • Housing diameter ≈ 35 mm
Find out more

HR 1120

  • Electronic handwheel with integral bearing
  • Version for integration
  • Mechanical detent
  • Housing diameter: 60 mm
Find out more

ERO 1400 series

  • Incremental rotary encoders without integral bearing
  • Low-profile design
  • Blind hollow shaft and hollow through shaft
  • High positioning accuracy
  • Housing diameter ≈ 35 mm
Find out more

ERO 1200 series

  • Incremental rotary encoders without integral bearing
  • Comprised of scanning unit and rotor unit
  • Low-profile design
  • Hollow through shaft
  • High positioning accuracy
  • Housing diameter ≈ 56 mm
Find out more

AEF 1300 series

  • Absolute rotary encoders with integral bearing
  • Stator couplings for axial mounting
  • Very high positioning accuracy
  • Housing diameter ≈ 56 mm
Find out more
